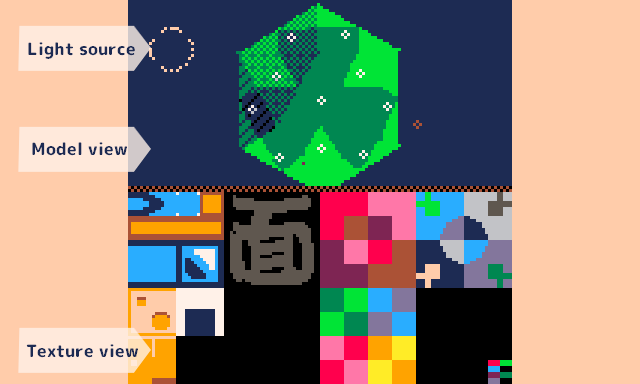

Interface

The top of the screen displays the model, and you can manipulate the model like you would in the modeling screen or data management screen.

The bottom displays the texture and selected UVs.

Selection cursor

The modeling screen displays the models you have edited or created, as well as preset models.

You can operate the models in the same way as on the data management screen.

Operations are accepted when the selection cursor (mouse) is at the top of the screen.

Grab cursor

The texture image set in the tool and the UVs of the selected faces are displayed.

Operations are accepted when the selection cursor (mouse) is at the bottom of the screen.

Light source

Displays the position of the light illuminating the 3D model. (When the Alt key is pressed)

Indicates ON (skin color) or OFF (black) status.

Operation list

Slide the 3D model	+drag (at the top of the screen)
Rotate the 3D model	drag (at the top of the screen)
Sale the 3D model	+ (at the top of the screen)
Move the light source	[Vertical/Horizontal] +drag [Front/Back] ++dra
Reset the position, scale, and size of the 3D model
Reset the rotation of the 3D model	+
Reset the position of the light source	+
Slide the texture image	drag (at the top of the screen)
Scale the texture image	+ (at the top of the screen)
Light source ON/OFF	+
Texture drawing mode
Color drawing mode
Line drawing mode
Return to the start menu	+
Go to the 3D model editing screen	++
